My configuration for Traefik with wildcard TLS certificates.
When you host several Internet-facing services it’s of the utmost importance the encrypt the traffic with TLS. It’s also very convient to have wildcard certificates and have subdomains redirect traffic to specific ports so that no more than 1 TLS certificate is needed. It’s also true that subdomains look better aesthetically than a domain name with ports; exhibit A:
Most people will agree that the first option is more pleasing to the eye, also easier to remember. Not to mention that you won’t have port shortages of any kind, which also makes running multiple instances of the same service at the same time a breeze. I do this a lot while performing tests.
Domain registrar DNS#

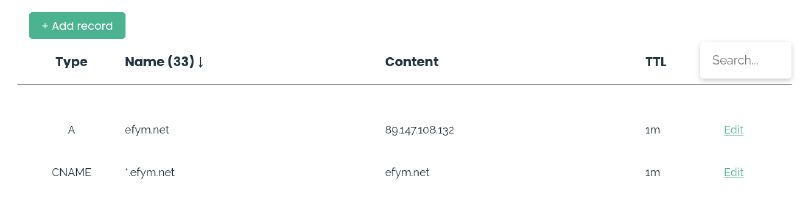

The first thing we need to do is point the registrar’s DNS records for our domain name to the IP address of the box we’re hosting Traefik on, I am using Njalla and created these records:
Reverse proxy with Traefik#
We’re going to use what’s called a reverse proxy. There are a few options in this department, in the past I’ve used nginx and it works well; but my preferred one is Traefik. I’ve been using it for around 2 years with no problems at all. Its configuration isn’t the easiest, but once it has been properly set up it is—in my opinion—the best reverse proxy when working with containers since it can dynamically route traffic to the correct endpoints by reading labels assigned to Docker containers on creation.
We’re going to deploy Traefik using docker-compose. I will assume the reader can install docker-compose by themselves.
There are 2 ways to way to write down Traefik configuration, we can do it on with config files or by appending lines to the command directive in the docker-compose file. I personally use config files so that’s what I’ll show here.
There are also 2 types of configuration instructions: static and dynamic. The static configurations are the ones under the command directive or inside a file called traefik.yml. Dynamic configurations go under the containers’ labels or in any other file besides traefik.yml.

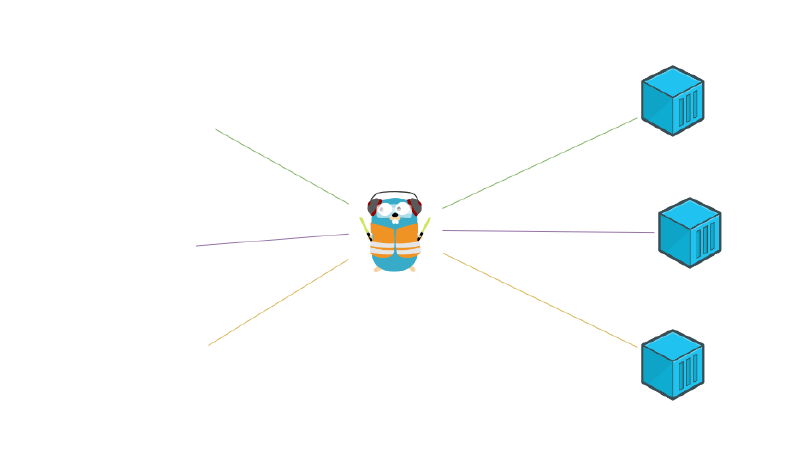

Here’s a diagram to visualize the topology:
Let’s create some directories to store Traefik files:
$ mkdir -p /srv/traefik/traefik-{config,ssl,logs}Firstly let’s create our Traefik static configuration file with this content:
$ cat /srv/traefik/traefik-config/traefik.yml
global:
checkNewVersion: false
sendAnonymousUsage: false
log:
level: INFO
format: common
filePath: /var/log/traefik/traefik.log
accesslog:
format: common
filePath: /var/log/traefik/access.log
api:
dashboard: true
insecure: true
entryPoints:
web:
address: :80
http:
redirections:
entryPoint:
to: websecure
scheme: https
websecure:
address: :443
certificatesResolvers:
letsencrypt:
acme:
email: tw1zr@efym.net
storage: /ssl-certs/acme.json
caServer: "https://acme-v02.api.letsencrypt.org/directory"
dnsChallenge:
provider: njalla
delaybeforecheck: 10
resolvers:
- "9.9.9.9"
tls:
options:
default:
minVersion: VersionTLS12
providers:
docker:
exposedByDefault: false
file:
directory: /etc/traefik
watch: trueThis static configuration file defines:
- The log format and storage
- Forced http to https redirection
- Minimum TLS version accepted (here set to TLSv1.2)
- Directory to watch for dynamic config files (set to
/etc/traefik) - TLS certificate resolver
We’re going to use Let’s Encrypt through a DNS challenge to obtain our wildcard certificate. It will be stored in ACME format in the
/ssl-certs/acme.jsonfile as defined. Also note that I set the provider directive to njalla, that’s because Njalla is the domain registrar that I use. But this can be changed if you use another registrar. Traefik has very good documentation on this.
The Njalla provider needs one environment variables to be able to complete the DNS challenge, we will store this variables in a file called traefik-env and later define it in our docker-compose.yml file.
$ cat /srv/traefik/traefik-env
NJALLA_TOKEN=xxxxxxxxxxxxxxxxxxxx(My real token has been redacted for obvious reasons.)
We will also create a dynamic config file to define middlewares. In this file we will define a basic auth middleware that will be used to authenticate to the Traefik dashboard.
We can use htpasswd to generate the basic auth credentials:
$ htpasswd -nbB tw1zr xxxxx(My real password has been replaced for xxxxx)
$ cat /srv/traefik/traefik-config/middlewares.yml
http:
middlewares:
traefik-auth:
basicAuth:
users:
- "tw1zr:$2y$05$H41PI9inzmhZcEOkUuTR7O74/7ADxZ/Z7.awyAhXB/lR3AHdNiPAu"Now inside the base /srv/traefik directory our docker-compose.yml file should look like this:
$ cat /srv/traefik/docker-compose.yml
---
version: "3.7"
services:
traefik:
container_name: "traefik"
hostname: "traefik"
image: "traefik:latest"
restart: "unless-stopped"
ports:
- "80:80"
- "443:443"
env_file:
- "./traefik-env"
volumes:
- "/etc/localtime:/etc/localtime:ro"
- "/var/run/docker.sock:/var/run/docker.sock:ro"
- "./traefik-config:/etc/traefik"
- "./traefik-ssl:/ssl-certs"
- "./traefik-logs:/var/log/traefik"
labels:
- "traefik.enable=true"
- "traefik.http.routers.traefik.tls.certresolver=letsencrypt"
- "traefik.http.routers.traefik.tls.domains[0].main=efym.net"
- "traefik.http.routers.traefik.tls.domains[0].sans=*.efym.net"
- "traefik.http.routers.traefik.tls=true"
- "traefik.http.routers.traefik.service=api@internal"
- "traefik.http.routers.traefik.middlewares=traefik-auth@file"
- "traefik.http.routers.traefik.rule=Host(`traefik.efym.net`)"
networks:
- "rawr"
networks:
rawr:
name: "rawr"
ipam:
driver: "default"
config:
- subnet: "10.3.0.0/24"With this file we’re telling Docker to map ports 80 and 443 (http and https respectively) to the same ports in the container. Those ports are HTTP standards, now when any HTTP traffic hits the host machine it will be redirected to the Traefik container; then Traefik will forward that traffic to whatever endpoint we assign it using Docker labels.
The env_file directive maps the traefik-env file we created with enviroment variables so the container can use them when created.
We’re also mounting a few volumes, the reasoning is as follows:
- /etc/localtime: TLS certificates are time-sensitive, it’s important to have the correct time inside the container that Traefik is running in.
- /var/run/docker.sock: Allows Traefik to monitor the Docker socket and dynamically configure itself based on container labels.
- ./traefik-config: Persistance of static and dynamic config files
- ./traefik-ssl: Persistance of TLS certificates
- ./traefik-logs: Persistance of logs generated by Traefik
Now about the labels:
- Enable Traefik for this container as well as TLS
- We assign the certificate resolver’s name that was defined in the static config file
- Specify the domain name and all its subdomains (with
*, which stands for wildcard) that the certificate is going to be valid for - Enable the Traefik web dashboard
- Enable the middleware we created above for basic auth
- Lastly we define the subdomain we want to root to this container (to the dashboard in this case) (There’s no reason to define which port it gets routed to in this case, the dashboard is an internal Traefik thing
At the end of the file we also specify a network named rawr. Every container that will be routed to by Traefik needs to share a network with it, the name of the network is arbitrary.
All that’s left to do now is change into /srv/traefik directory and start the container with this command:

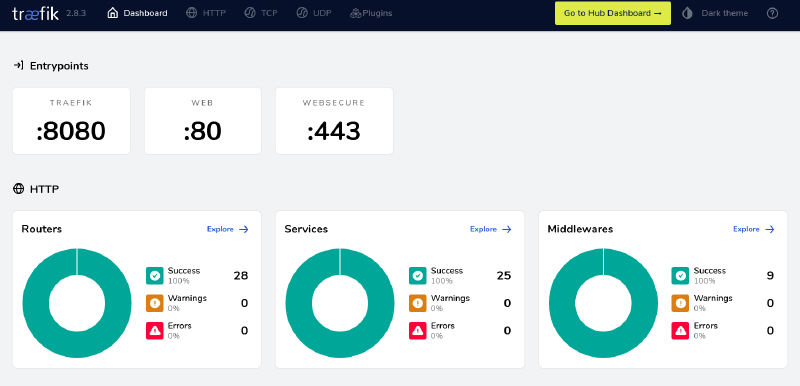

$ docker-compose up -dWait a minute or so for Traefik to spin up and acquire the certificate, then if we open https://traefik.efym.net we should get a basic auth prompt, after entering the correct credentials we should see the Traefik dashboard:
My dashboard shows many more routers and services than a brand new install would because I have more stuff running.
